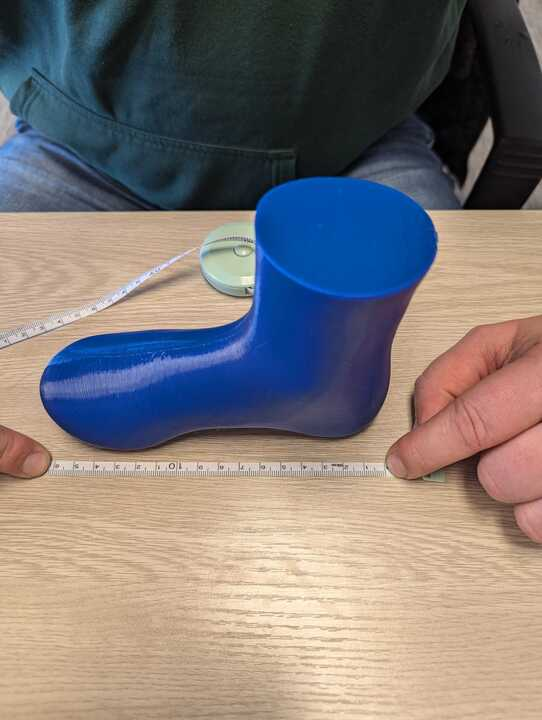

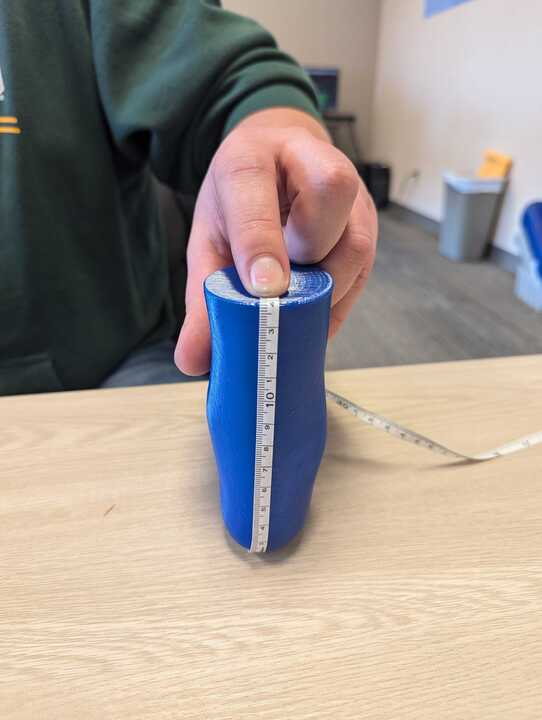

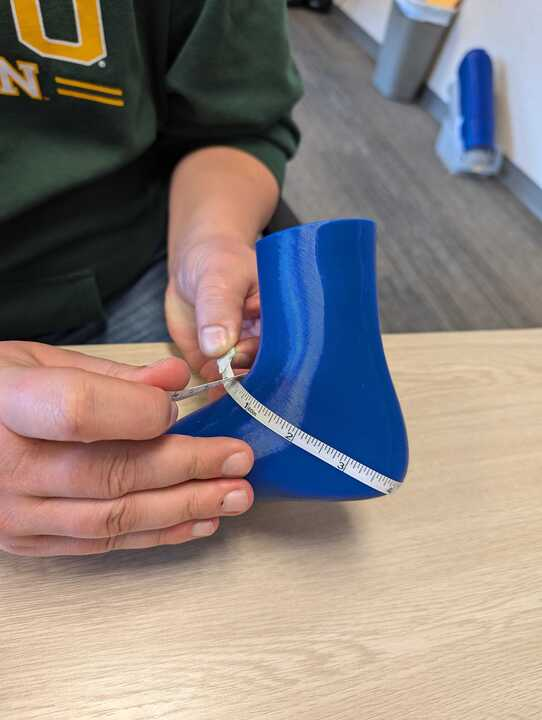

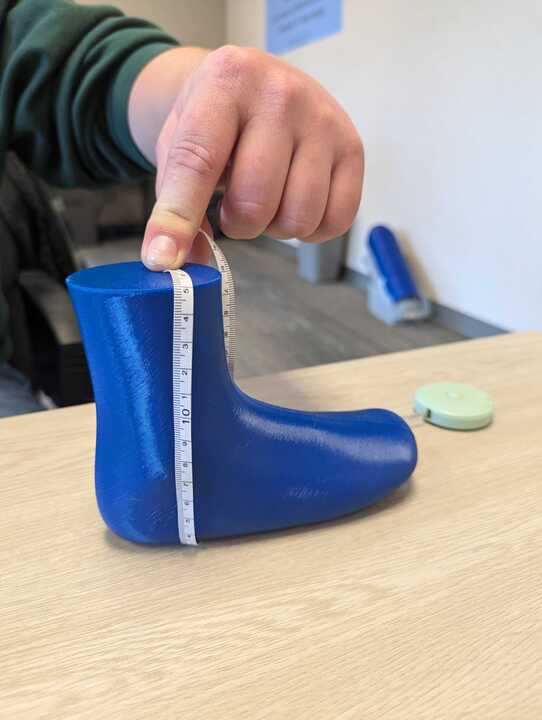

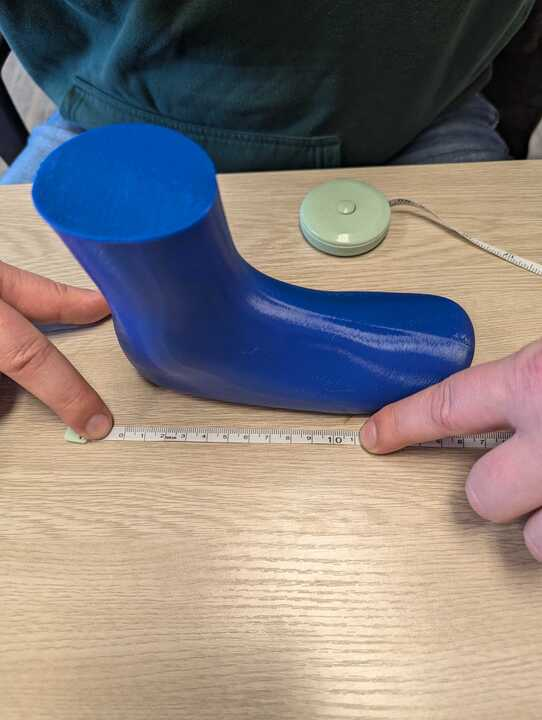

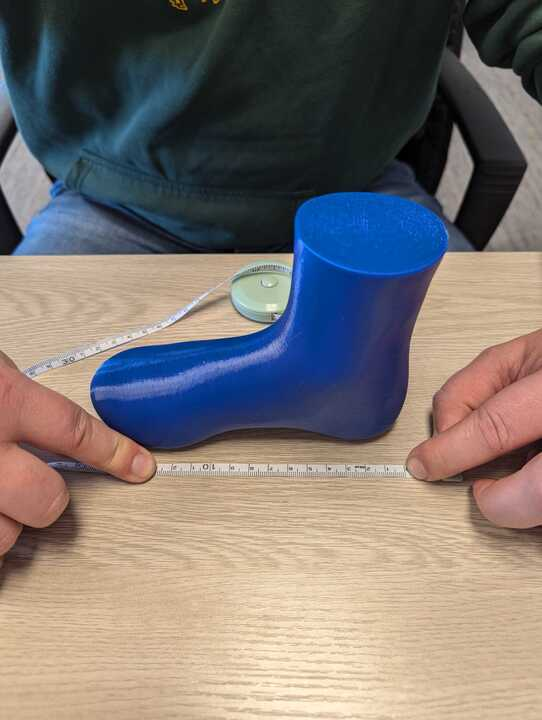

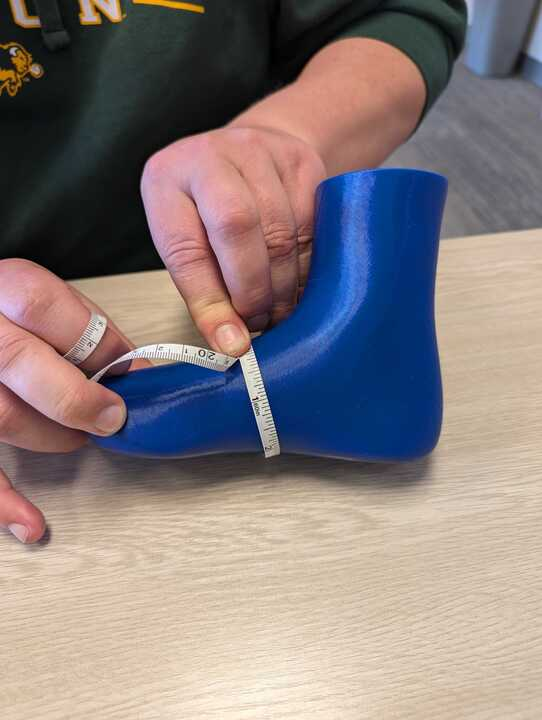

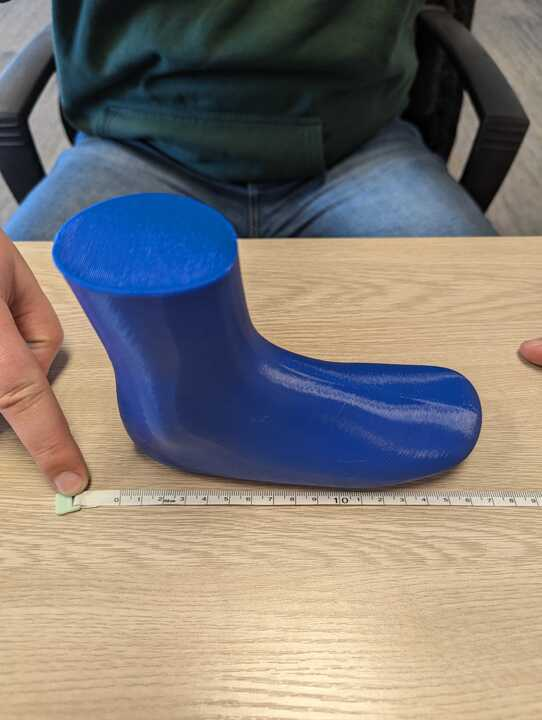

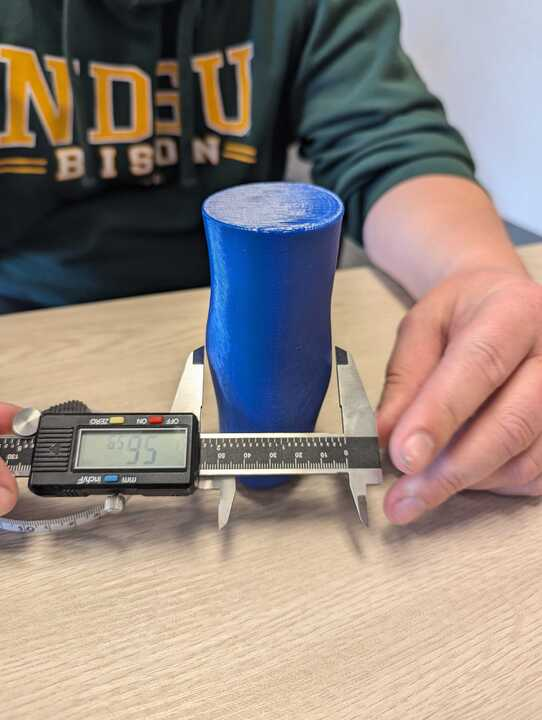

--- title: Galileo SMO Measurement Instructions description: SMO Measurements --- [Skip to content](https://www.help.protosthetics.com/galileo/galileo-smo-measurement-instructions-products#main-content) English Show submenu for translations ![ProtostheticsGalileo Logo](https://www.help.protosthetics.com/hubfs/ProtostheticsGalileo%20Logo.svg) Open main navigation Close main navigation - English Show submenu for translations - [Contact us](https://www.help.protosthetics.com/galileo/contact-us) [Contact us](https://www.help.protosthetics.com/galileo/contact-us?hsLang=en) How can we help you? - There are no suggestions because the search field is empty. 1. [Galileo by Protosthetics](https://www.help.protosthetics.com/galileo?hsLang=en) 2. [Galileo Product Options](https://www.help.protosthetics.com/galileo/galileo-product-options?hsLang=en) 3. [Orthotic Products](https://www.help.protosthetics.com/galileo/galileo-product-options?hsLang=en#orthotic-products) February 3, 2026 # Galileo SMO Measurement Instructions The numbers of the measurements given here correspond to those on the order form. 1\. **Horizontal AP at Medial Malleolus\*:** \*This is a measurement unique to Galileo SMO, so it's important! At the Height of the Medial malleolus, measure the distance between the anterior and posterior sides of the limb.\![Horizontal AP at Medial Malleolus](https://storage.crisp.chat/users/helpdesk/website/-/b/b/6/1/bb61eef0a8622800/image_r88j5o.png) 2\. **Circumference from Back of Heel over Front of Ankle:** Measure around the foot, following a path between the apex of the Heel to the Dorsum. ![e1](https://www.help.protosthetics.com/hs-fs/hubfs/e1.png?width=542&height=720&name=e1.png)   3\. **Circumference through Apex of Arch:** The path in which the circumference is measured does not have to be normal to the ground, it should fit naturally around the apex of the arch. ![e2](https://www.help.protosthetics.com/hs-fs/hubfs/e2.png?width=542&height=720&name=e2.png) 4\. **Circumference over 1st and 5th Met Heads:** This is also unique to Galileo SMO, so make sure you grab it! This must encapsulate the 1st and 5th Met Heads ![e3](https://www.help.protosthetics.com/hs-fs/hubfs/e3.png?width=542&height=720&name=e3.png)  5\. **Circumference at Proximal Trim Height** ![e4](https://www.help.protosthetics.com/hs-fs/hubfs/e4.png?width=542&height=720&name=e4.png)  6\. **Width at Apex of Malleoli** ![e5](https://www.help.protosthetics.com/hs-fs/hubfs/e5.png?width=542&height=720&name=e5.png)  7\. **Height of Lateral Malleolus** ![e6](https://www.help.protosthetics.com/hs-fs/hubfs/e6.png?width=542&height=720&name=e6.png)   8\. **Height of Medial Malleolus** ![e7](https://www.help.protosthetics.com/hs-fs/hubfs/e7.png?width=542&height=720&name=e7.png)   \*9. **Height of Desired Proximal Trim**\*\* ![e8](https://www.help.protosthetics.com/hs-fs/hubfs/e8.png?width=542&height=720&name=e8.png)  10\. **Width at Met Heads:** Should not be taken as a straight line between the two met heads, rather perpendicular to the longitudinal axis of the foot ![e9](https://www.help.protosthetics.com/hs-fs/hubfs/e9.png?width=542&height=720&name=e9.png)   11\. **Posterior Calcaneus to End of 5th Toe**  ![e10](https://www.help.protosthetics.com/hs-fs/hubfs/e10.png?width=542&height=720&name=e10.png) 12\. **Posterior Calcaneus to 5th Met Head** ![w12](https://www.help.protosthetics.com/hs-fs/hubfs/w12.png?width=542&height=720&name=w12.png)   13\. **Posterior Calcaneus to 1st Met Head** ![e13](https://www.help.protosthetics.com/hs-fs/hubfs/e13.png?width=542&height=720&name=e13.png)   14\. **Posterior Calcaneus to End of 1st Toe** ![e14](https://www.help.protosthetics.com/hs-fs/hubfs/e14.png?width=542&height=720&name=e14.png)   - [Account & General Information](https://www.help.protosthetics.com/galileo/account-general-information?hsLang=en#main-content) - [Account & Permissions](https://www.help.protosthetics.com/galileo/account-general-information?hsLang=en#account-permissions) - [Policies & Guarantees](https://www.help.protosthetics.com/galileo/account-general-information?hsLang=en#policies-guarantees) - [Printer Returns](https://www.help.protosthetics.com/galileo/account-general-information?hsLang=en#printer-returns) - [Scanning Options](https://www.help.protosthetics.com/galileo/scanning-options?hsLang=en#main-content) - [App & Hardware Setup](https://www.help.protosthetics.com/galileo/scanning-options?hsLang=en#app-hardware-setup) - [Scanning Best Practices](https://www.help.protosthetics.com/galileo/scanning-options?hsLang=en#scanning-best-practices) - [Ordering Process & FabOne Portal](https://www.help.protosthetics.com/galileo/ordering-process-fabone-portal?hsLang=en#main-content) - [Placing & Managing Orders](https://www.help.protosthetics.com/galileo/ordering-process-fabone-portal?hsLang=en#placing-managing-orders) - [Print Control](https://www.help.protosthetics.com/galileo/ordering-process-fabone-portal?hsLang=en#print-control) - [CFAB Options](https://www.help.protosthetics.com/galileo/ordering-process-fabone-portal?hsLang=en#cfab-options) - [Galileo Product Options](https://www.help.protosthetics.com/galileo/galileo-product-options?hsLang=en#main-content) - [Prosthetic Products](https://www.help.protosthetics.com/galileo/galileo-product-options?hsLang=en#prosthetic-products) - [Orthotic Products](https://www.help.protosthetics.com/galileo/galileo-product-options?hsLang=en#orthotic-products) - [Customization & Fitting](https://www.help.protosthetics.com/galileo/galileo-product-options?hsLang=en#customization-fitting) - [Filament & Printing FAQs](https://www.help.protosthetics.com/galileo/filament-printing-faqs?hsLang=en#main-content) - [Filament Loading & Handling](https://www.help.protosthetics.com/galileo/filament-printing-faqs?hsLang=en#filament-loading-handling) - [Preparing the Printer](https://www.help.protosthetics.com/galileo/filament-printing-faqs?hsLang=en#preparing-the-printer) - [Hardware Troubleshooting & Maintenance](https://www.help.protosthetics.com/galileo/hardware-troubleshooting-maintenance?hsLang=en#main-content) - [General Tips & Tricks](https://www.help.protosthetics.com/galileo/hardware-troubleshooting-maintenance?hsLang=en#general-tips-tricks) - [Connection Troubleshooting](https://www.help.protosthetics.com/galileo/hardware-troubleshooting-maintenance?hsLang=en#connection-troubleshooting) - [Hardware Troubleshooting - Pro](https://www.help.protosthetics.com/galileo/hardware-troubleshooting-maintenance?hsLang=en#hardware-troubleshooting-pro) - [Hardware Maintenance - Pro](https://www.help.protosthetics.com/galileo/hardware-troubleshooting-maintenance?hsLang=en#hardware-maintenance-pro) - [Hardware Troubleshooting - Galileo O&P/Pro 2](https://www.help.protosthetics.com/galileo/hardware-troubleshooting-maintenance?hsLang=en#hardware-troubleshooting-galileo-op-pro-2) - [Hardware Maintenance - Galileo O&P/Pro 2](https://www.help.protosthetics.com/galileo/hardware-troubleshooting-maintenance?hsLang=en#hardware-maintenance-galileo-op-pro-2) [![ProtostheticsGalileo Logo-1](https://www.help.protosthetics.com/hubfs/ProtostheticsGalileo%20Logo-1.svg "ProtostheticsGalileo Logo-1")](http://protosthetics.com) 510 6th Ave N, Ste D, Fargo, ND 58102 USA [mailto:success@protosthetics.com](mailto:success@protosthetics.com) Copyright © 2026, Protosthetics
